I have run my 16 mm scale Pedershaab loco for the first time. The model is still in a very early stage, but the running test worked out alright.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhFkuOC19BnhP1rx7MuDOlNC-kX6ODeVd0y_ci_3RrvBFujJMFPsSdbpVRg8lqHpVOPmFOk6H1o66XSVEV5AQB3wag0fNvRj2GwfZlws-lppMcQYYFw4OPvRf6WxOqMxU6fxOXgNiy7-Zs/s640/DSC_0158y.jpg) |
This is the test configuration for the first run of my 1/19 Pedershaab on 32 mm gauge. With wires attached the motor is running and the Lister is acting as a brake to keep the one day to be finished-model in the same spot to be photographed. |
Rather than using a double installation of 2 3.7V 650 mAh batteries as I had planned, I used a single 3.7V 2800 mAh Li-ion battery. Even with generous space under the bonnet for battery and motor, the double battery plan took up too much space. A single battery simplyfies the circuitry and with a much higher mAh-value the single battery will probably outlast the double battery solution in endurance anyway.
I had planned to fit the battery in a fancy battery holder bolted to a plasticcard bracket, but in the end I exchanged it for a simple construction of five pieces of plasticcard and a cable tie. I soldered tabs to each pole on the battery and attached cables to them.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjS08zDtMtZEUxqkWEpx80d_TungKbHqjPatT8bCdC-VDv8nFT3I6M7pdj1xurwHy99eFTl9aiSgXi9GBJ-xpFVVoOjTuLXV1qDXlzX-KrnC-5edjjrbdvuB0XkiZjWWfyiM3eWmAe5BPE/s640/DSC_0142y.jpg) |
Plastic bracket and battery holder before I chose a much more primitive solution. No need to complicate things. |
Running is nice and slow even with no RC-gear fitted. The delrin chain transfers drive to the second axle and adds a realistic sound of chain clutter. I will definately fit RC-equipment to the model, but perhaps a simple on/off switch and directional change switch would be enough to get realistic running?
With my own interest in locomotives from Pedershaab I was thrilled to see a Danish loco builder having 2 series of standard gauge Pedershaab locos in 1:32 scale in progress. On standard gauge the Pedershaab locos were used for light shunting duties - one loco being immortalized for starring in a 'Olsenbanden' movie.
More info on the models can be found here - in Danish.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjAnUACv1s71qpuaD3ME3LjMl33UCUyzuUpDDAzgmiywNCe1qLbgD6h1gZEY2IwQjBR2gcYXtn5qnRL_R6a62J-VUOjpcecXYbswQWzclIAPegZgSDLiF3tJtBPOkqFBOo_oAjmROk_jj4/s640/safe_image.php.jpg) |

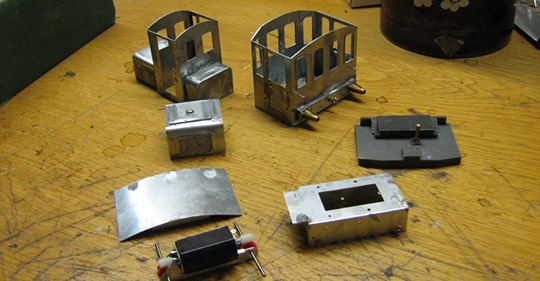

Parts for 1:32 scale standard gauge Pedershaab shunting tractors on a Danish modeller's work bench. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg5fymQb7JRkX_z6VxS92OFPkAuqqozp91qlzVBRVV7QAyQwwjdFUKLhlLdHqOE4HV3krbrTi-HmHQ7GlovyVP1y4VUjzRGS9pHu8F-plpftkGra5SG2-55I4mEk-SpTukMzRGkZry88HQ/s640/Traktor_001.jpg) |
Parts for several 1:32 scale Pedershaab shunting tractors await final assembly. |
